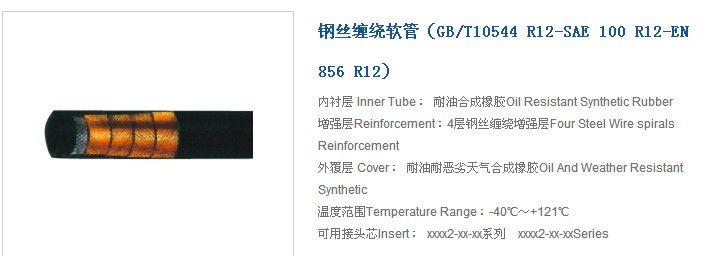

- 鋼絲纏繞軟管
- 本站編輯：杭州派躍威流體設備有限公司發布日期：2017-12-07 14:10 瀏覽次數：
| 軟管代號 | 公稱內徑 | 軟管尺寸 | 軟管內徑 | 軟管外徑 | 比較大工作壓力 | 比較小爆破壓力 | 比較小彎曲半徑 | 配用套筒 |
|---|
| PART NO. | mm | DASH | Inch | mm | mm | MPa | MPa | mm | |
| R1206 | 10 | -06 | 3/8" | 9.5 | 20.3 | 28.0 | 112.0 | 127 | S00400-06 |
| R1208 | 13 | -08 | 1/2" | 12.7 | 23.8 | 28.0 | 112.0 | 178 | S00400-08 |
| R1210 | 16 | -10 | 5/8" | 15.9 | 27.4 | 28.0 | 112.0 | 203 | S00400-10 |
| R1212 | 19 | -12 | 3/4" | 19 | 30.7 | 28.0 | 112.0 | 241 | S00400-12 |
| R1216 | 25 | -16 | 1" | 25.4 | 38.0 | 28.0 | 112.0 | 305 | S00400-16 |
| R1220 | 32 | -20 | 1.1/4" | 31.8 | 47.0 | 21 | 84.0 | 419 | S01400-20 |
| R1224 | 38 | -24 | 1.1/2" | 38.1 | 53.5 | 17.5 | 70.0 | 508 | S01400-24 |
| R1232 | 51 | -32 | 2" | 50.8 | 66.7 | 17.5 | 70.0 | 635 | S00401-32 |
