- 美制螺紋O形圈平面ORFS接頭
- 本站編輯：杭州派躍威流體設備有限公司發布日期：2017-12-08 11:00 瀏覽次數：

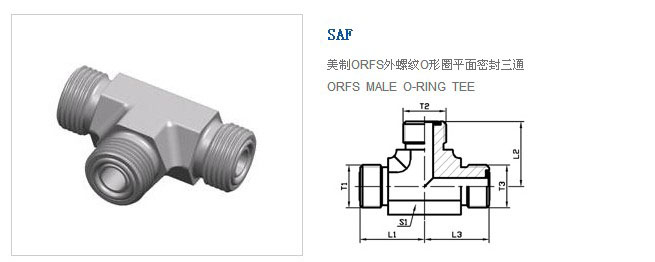

| 代號 PART NO. | 螺紋 THREAD | 尺寸 DIMENSIONS | 重量 | 工作壓力MPa |
|---|
| T1 | T2 | T3 | L1 | L2 | L3 | S1 |
|---|
| SAF-04 | 9/16＂X18 | 9/16＂X18 | 9/16＂X18 | 23 | 23 | 23 | 14 | 68 | 63 |
| SAF-06 | 11/16＂X16 | 11/16＂X16 | 11/16＂X16 | 25 | 25 | 25 | 19 | 106 |
| SAF-08 | 13/16＂X16 | 13/16＂X16 | 13/16＂X16 | 28 | 28 | 28 | 19 | 148 |
| SAF-10 | 1＂X14 | 1＂X14 | 1＂X14 | 33.3 | 33.3 | 33.3 | 27 | 262 | 40 |
| SAF-12 | 1.3/16＂X12 | 1.3/16＂X12 | 1.3/16＂X12 | 37.3 | 37.3 | 37.3 | 30 | 401 |
| SAF-16 | 1.7/16＂X12 | 1.7/16＂X12 | 1.7/16＂X12 | 41.7 | 41.7 | 41.7 | 36 | 612 |
| SAF-20 | 1.11/16＂X12 | 1.11/16＂X12 | 1.11/16＂X12 | 44.7 | 44.7 | 44.7 | 41 | 816 | 25 |
| SAF-24 | 2＂X12 | 2＂X12 | 2＂X12 | 48.8 | 48.8 | 48.8 | 48 | 1195 |
